Can Heat Cable Touch Itself?

When installing heat cable for pipe freeze protection, roof de-icing, or gutter systems, one of the most common questions homeowners and contractors ask is:

Can heat cable touch itself?

The answer depends entirely on the type of heat cable being used.

Some heat cables are specifically designed to safely overlap and cross over themselves, while others can overheat and fail if they come into contact with each other.

Understanding the difference can help prevent installation mistakes, improve system performance, and extend the life of your heating system.

Why Cable Overlap Matters

Heat cable works by converting electrical energy into heat. When two sections of a heating cable touch or overlap, heat can become concentrated in a small area.

If the cable is not designed to regulate its temperature, this concentrated heat may cause:

Excessive temperatures
Damage to the cable insulation
Premature failure
Tripped circuit protection
Fire hazards in extreme situations

For this reason, manufacturers provide specific installation guidelines regarding cable spacing and overlap.

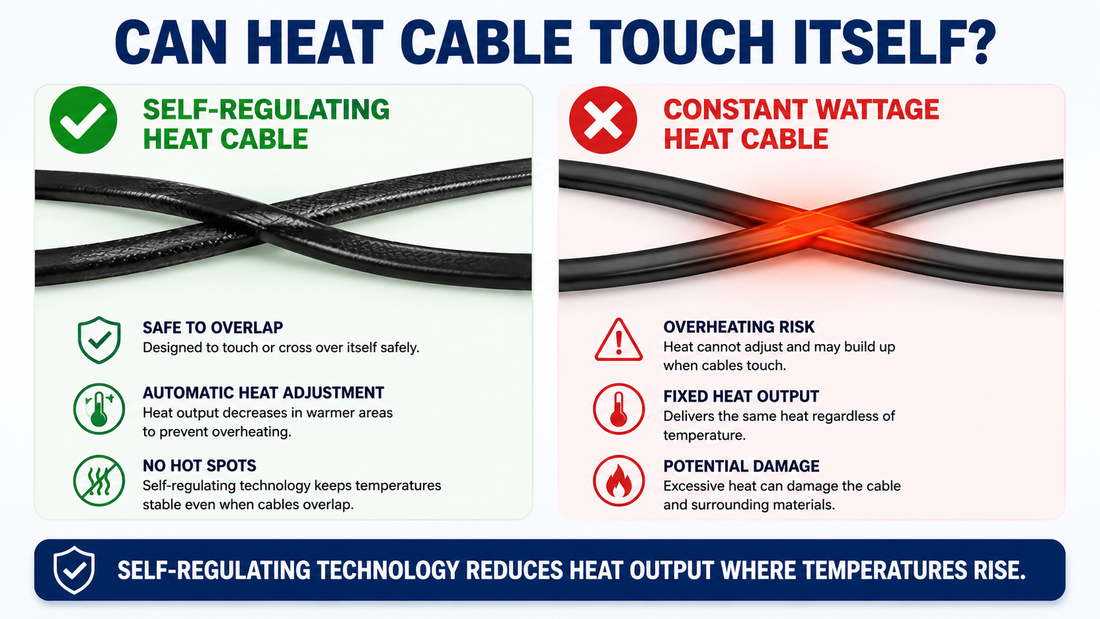

Self-Regulating Heat Cable: Yes, It Can Touch Itself

Self-regulating heat cable is engineered with a conductive polymer core that automatically adjusts heat output based on surrounding temperature.

When a section of cable becomes warmer, its electrical resistance increases, reducing power consumption and heat production.

Because of this unique technology, self-regulating heat cable can safely:

✓ Touch itself

✓ Cross over itself

✓ Be wrapped around valves and fittings

✓ Be installed on irregular pipe shapes

✓ Adjust heat output independently along the cable length

This self-adjusting behavior prevents localized overheating and makes installation much more forgiving compared to traditional heating cables.

Constant Wattage Heat Cable: No, It Should Not Touch Itself

Constant wattage heat cable operates differently.

Instead of adjusting heat output, it delivers the same amount of heat regardless of temperature.

Because the wattage remains constant:

Heat output cannot decrease automatically
Overlapping sections create hot spots
Cable temperatures can rise rapidly
Insulation may be damaged

For this reason, most constant wattage heating cables must never cross or overlap unless specifically approved by the manufacturer.

Always follow the installation instructions for the particular cable being used.

Common Applications Where Cable Contact Occurs

Self-regulating heat cable is often installed in areas where overlap is difficult to avoid.

Examples include:

Pipe Freeze Protection

When wrapping around:

Valves
Elbows
Flanges
Water meters
Backflow preventers

Multiple layers of cable may naturally touch each other.

Roof and Gutter De-Icing

Heat cable frequently crosses itself when creating:

Zig-zag roof patterns
Downspout heating loops
Valley protection systems

Self-regulating cable handles these situations safely.

Industrial Applications

Pumps, tanks, and process piping often require complex routing where cable contact is unavoidable.

Final Answer: Can Heat Cable Touch Itself?

The short answer is:

Self-regulating heat cable can safely touch or overlap itself because it automatically reduces heat output in warmer areas.

However, constant wattage heat cable generally should not touch or overlap itself unless specifically permitted by the manufacturer.

If you're installing a freeze protection or roof de-icing system, choosing a high-quality self-regulating heat cable can make installation easier, safer, and more reliable while providing efficient protection throughout the winter season.
