Bare-Braid Self-Regulating Heating Cables

When selecting a self-regulating heating cable for freeze protection, it’s important to understand that not all heat trace cables are designed for the same installation conditions. Some self-regulating heating cables are manufactured without an outer protective jacket, leaving the metal braided layer exposed as the outermost layer. While these cables can still provide reliable freeze protection, they are designed only for dry indoor environments and should never be exposed directly to water, moisture, or outdoor weather.

This article explains how these cables are constructed, where they can be used safely, and why dry-environment applications are critical.

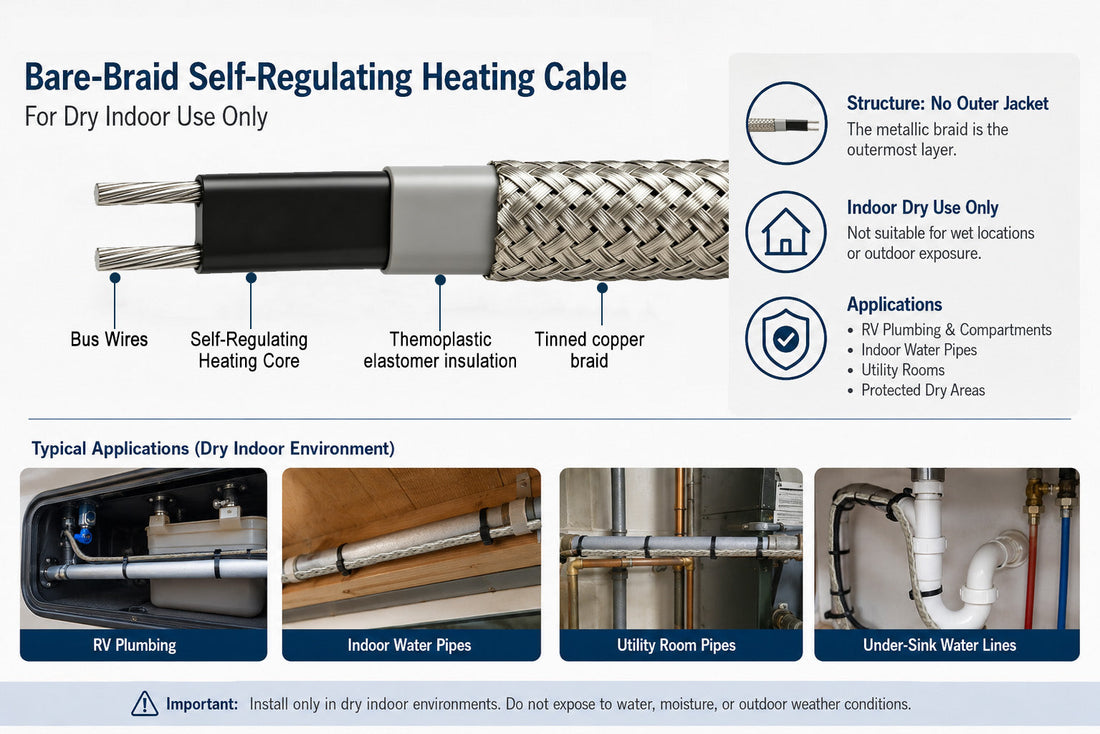

What Is a Bare-Braid Self-Regulating Heating Cable?

A standard self-regulating heating cable typically includes several layers:

1. Conductive bus wires
2. Self-regulating heating core
3. Inner insulation layer
4. Metallic grounding braid
5. Outer protective jacket

However, in a bare-braid design, the cable does not include the final outer jacket layer. The exposed metal braid becomes the outer surface of the cable.

Because the protective jacket is missing, the cable has:

* Less protection against moisture
* Reduced resistance to abrasion and chemicals
* Limited UV and weather resistance
* Greater exposure risk in wet environments

This design is intended specifically for indoor dry-area freeze protection applications.

Why It Can Only Be Used in Dry Environments

The outer jacket on standard heating cables serves as a critical barrier against:
Water intrusion
Condensation
Snow and ice
UV exposure
Corrosion
Mechanical damage

Without this outer layer, moisture can eventually penetrate into the cable structure and affect:
Electrical insulation performance
Grounding reliability
Heating efficiency
Long-term safety and durability

For this reason, bare-braid self-regulating heating cables should only be installed in:

* Dry utility spaces
* Indoor RV compartments
* Protected pipe chases
* Interior plumbing systems
* Enclosed cabinets or crawl spaces with no moisture exposure

Common Applications

1. RV Freeze Protection
Bare-braid self-regulating heating cables are commonly used inside RVs where plumbing systems are installed in protected indoor compartments.
Typical RV applications include:
* Freshwater supply lines
* Internal plumbing systems
* Utility bays
* Holding tank compartments
* Under-sink water lines
Because RV compartments are generally enclosed and dry, these heating cables can provide efficient freeze protection during winter travel and camping.

2. Indoor Water Pipe Freeze Protection
These cables are also suitable for residential and commercial indoor piping systems, including:
* Basement water lines
* Utility room pipes
* Interior copper or PEX plumbing
* Mechanical rooms
* Pump houses with controlled dry conditions
The self-regulating technology automatically adjusts heat output based on surrounding temperature, helping improve energy efficiency while preventing overheating.

Advantages of Bare-Braid Self-Regulating Heating Cables

1. Flexible and Easy to Install
Without a thick outer jacket, the cable is often:
* More flexible
* Easier to route around valves and fittings
* Simpler to install in tight spaces

2. Energy Efficient
Like other self-regulating cables, the heating output adjusts automatically according to ambient temperature:
* Colder areas receive more heat
* Warmer areas receive less heat
This helps reduce unnecessary energy consumption.

3. Suitable for Temperature-Sensitive Materials
Self-regulating cables are safe for many common pipe materials, including:
* Copper
* PEX
* PVC
* CPVC
* ABS
Because the cable reduces heat output automatically, it minimizes overheating risks.

Important Installation Guidelines

To ensure safe operation:
* Install only in dry indoor environments
* Do not expose the cable to standing water
* Avoid direct sunlight and UV exposure
* Use proper insulation over the pipe when required
* Follow all local electrical codes
* Use GFCI protection where applicable

If the application involves outdoor exposure, wet environments, roofs, gutters, or buried piping, a fully jacketed outdoor-rated self-regulating heating cable should be used instead.

Final Thoughts

Bare-braid self-regulating heating cables offer a flexible and energy-efficient solution for indoor freeze protection applications. Their lightweight construction and self-adjusting heating performance make them ideal for RVs, indoor plumbing systems, and other dry protected environments.

However, because these cables lack an outer protective jacket, they must only be used in dry locations and should never be exposed to water, snow, or outdoor weather conditions.

For safe and reliable freeze protection, always choose a heating cable specifically designed for the environment where it will be installed.
