Self-Regulating vs. Constant Wattage Heating Cables

When winter temperatures drop below freezing, exposed pipes, roofs, gutters, and industrial systems become vulnerable to ice buildup and freeze damage. Heating cables are one of the most effective solutions for freeze protection and snow melting, but choosing the right type is critical for safety, efficiency, and long-term performance.

The two most common types are self-regulating heating cables and constant wattage heating cables. While both are designed to provide heat, they operate very differently and are suitable for different applications.

This guide explains the differences between the two systems, their advantages and disadvantages, and how to choose the right heating cable for your project.

What Is a Self-Regulating Heating Cable?

A self-regulating heating cable automatically adjusts its heat output based on the surrounding temperature. As the ambient temperature drops, the cable produces more heat. As temperatures rise, the cable reduces its heat output automatically.

This technology is made possible through a special conductive core positioned between two bus wires. The resistance changes according to temperature, allowing the cable to regulate itself without external control systems.

How It Works
Colder areas → higher heat output
Warmer areas → lower heat output
Each section of the cable reacts independently

For example, if one section of a pipe is exposed to colder wind while another section is insulated, the colder section generates more heat automatically.

What Is a Constant Wattage Heating Cable?

A constant wattage heating cable delivers the same amount of heat output along its entire length, regardless of surrounding temperature.

Unlike self-regulating cables, the heat output remains fixed whenever the cable is powered on.

These cables typically use resistance wire technology and are commonly paired with thermostats or controllers to regulate operating temperature.

How It Works
Same wattage output at all times
Heat remains constant across the full cable length
External temperature control is often recommended

Constant wattage cables are widely used in applications where stable and predictable heating is required.

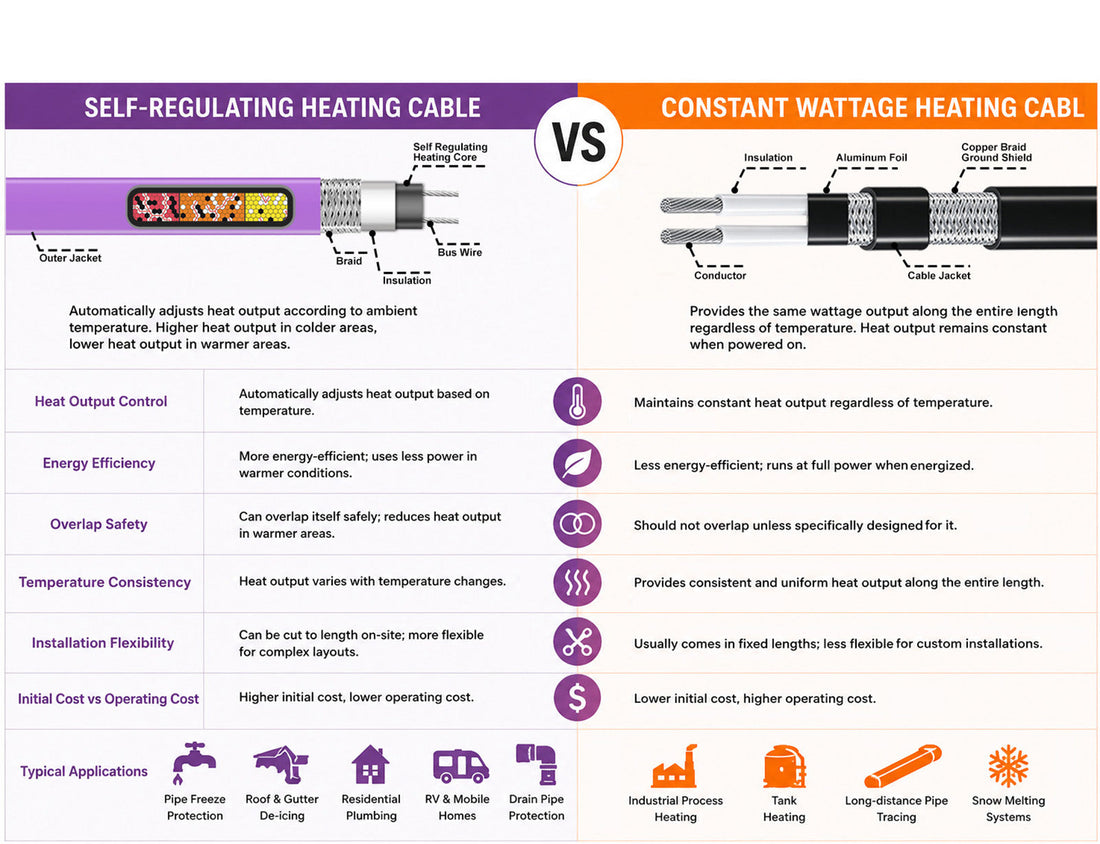

Main Differences Between Self-Regulating and Constant Wattage Heating Cables

1. Heat Output Control

Self-Regulating Cable:
Automatically adjusts heat output
Responds to ambient temperature changes
Prevents overheating naturally

Constant Wattage Cable:
Maintains fixed heat output
Does not react to temperature changes
Requires external controls in many applications

2. Energy Efficiency

Self-Regulating Cable:
Because the cable only produces the heat needed, it consumes less energy during warmer conditions.

Benefits include:
Lower operating costs
Improved efficiency
Reduced power consumption over time

Constant Wattage Cable:
Since the cable continuously outputs full power while energized, it generally consumes more electricity unless controlled by a thermostat.

3. Overlap Safety

Self-Regulating Cable:
Self-regulating cables can usually overlap themselves safely because the cable reduces heat automatically in warmer areas.

This makes installation easier in:
Roof valleys
Gutters
Complex pipe layouts
Constant Wattage Cable

Constant wattage cables should generally NOT overlap unless specifically designed for it. Overlapping may cause excessive heat buildup and cable damage.

4. Temperature Consistency

Self-Regulating Cable:
Heat output varies according to temperature conditions.
This is excellent for freeze protection but may not provide perfectly uniform temperatures.

Constant Wattage Cable:
Provides stable and consistent heating across the entire cable length.
This makes it ideal for:
Industrial temperature maintenance
Process heating
Applications requiring precise temperatures

5. Installation Flexibility

Self-Regulating Cable:
Can often be cut to length on-site
Easier to install
Adapts well to irregular layouts

Constant Wattage Cable:
Usually available in fixed lengths
Requires more careful planning
Less flexible for custom installations

6. Initial Cost vs Operating Cost

Self-Regulating Cable:
Higher initial purchase cost
Lower long-term energy consumption

Constant Wattage Cable:
Lower upfront cost
Higher operating costs over time

Selecting the correct heating cable helps improve system reliability, reduce maintenance costs, and protect your property from winter damage.

Whether you are protecting water pipes, preventing roof ice dams, or maintaining industrial process temperatures, understanding the differences between these two heating technologies is the key to making the right investment.
